Understanding W25Q128JVFIQ and Common Troubleshooting Scenarios

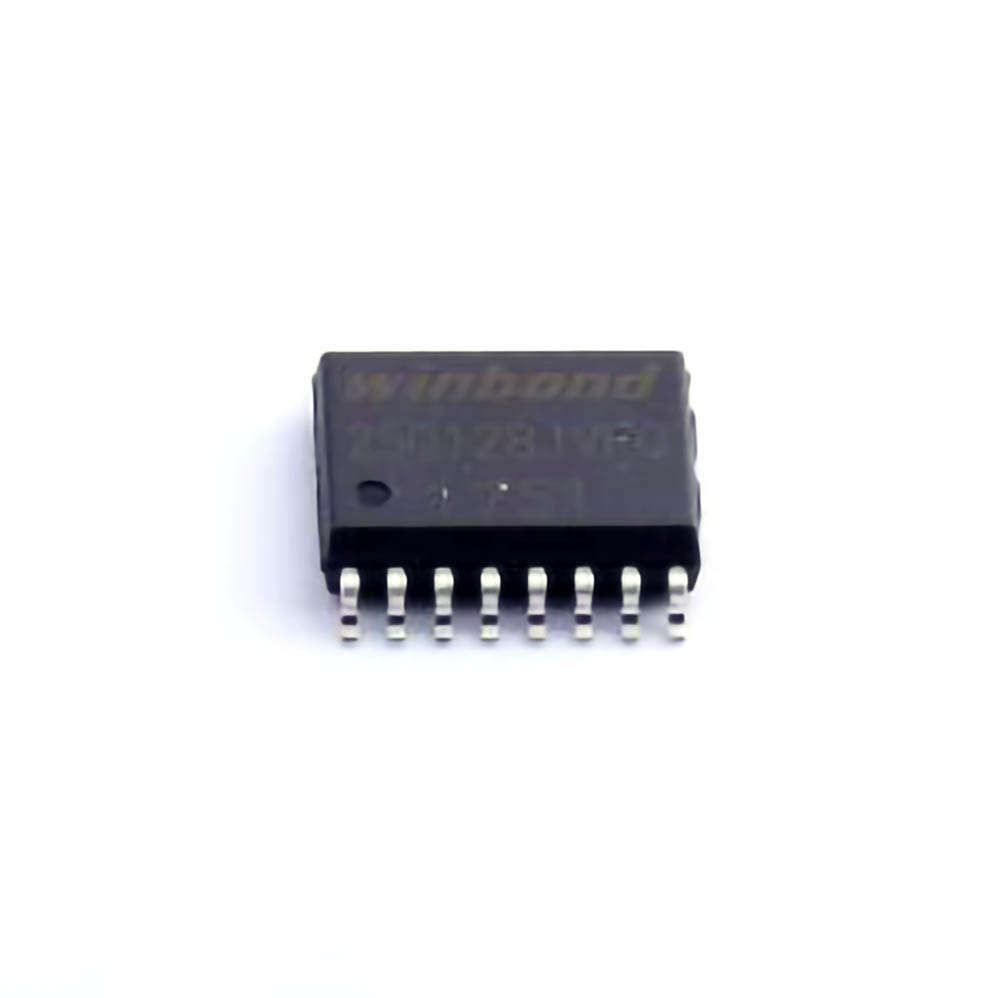

The W25Q128JVFIQ is a high-performance 128Mb (16MB) Serial Flash Memory from Winbond, designed for high-density storage in embedded systems. It uses the SPI (Serial Peripheral interface ) for fast data transfer, making it ideal for applications that require efficient, high-speed data storage and retrieval.
However, like any sophisticated component, issues can arise during implementation. Understanding these problems and knowing how to troubleshoot them is critical for developers, engineers, and technicians who rely on the W25Q128JVFIQ for their projects. In this first part of the article, we'll explore some of the most common troubleshooting scenarios that may occur when using the W25Q128JVFIQ.
1. Initialization Failures and Communication Issues
One of the most common problems developers encounter with the W25Q128JVFIQ is failure during initialization or communication problems. These issues often occur due to incorrect configurations or connection issues between the microcontroller and the memory chip.
Symptoms:
The device is not detected by the system.
Failed attempts to write or read data.
Communication timeouts or errors.
SPI bus errors.
Possible Causes:
Incorrect SPI Pin Connections: One of the first things to check is whether the SPI pins are connected properly. Ensure that the Chip Select (CS), Serial Clock (SCK), Master-Out Slave-In (MOSI), and MISO pins are wired correctly. If these connections are not properly set up, the chip may fail to communicate with the microcontroller.
Clock Frequency Mismatch: The W25Q128JVFIQ has a maximum clock frequency of 104 MHz. If the clock speed set in your microcontroller is higher than this, it can cause communication failures. Lowering the clock frequency may solve the problem.
Incorrect SPI Mode: The SPI protocol has four modes of operation, determined by clock polarity (CPOL) and clock phase (CPHA). The W25Q128JVFIQ operates in SPI Mode 0 (CPOL = 0, CPHA = 0). Using a different SPI mode can result in incorrect data transmission.
Solutions:
Double-check the wiring of the SPI interface to ensure the pins are correctly mapped.
Adjust the SPI clock speed to within the acceptable range for the W25Q128JVFIQ (up to 104 MHz).
Verify that the SPI mode is set to Mode 0 for proper communication.
2. Write Protection and Locked Memory Issues
The W25Q128JVFIQ offers features like write protection to prevent accidental overwriting of critical data. If the chip is write-protected, attempts to write data will fail, leading to confusion.
Symptoms:
The system is able to read data but cannot write to the memory.
Programming or firmware update failures.
No change in the contents of the memory after a write operation.
Possible Causes:
Write Protect Pin (WP) Activated: The W25Q128JVFIQ has a Write Protect pin (WP), which, when pulled low, disables writing to the entire memory. If this pin is inadvertently connected to ground or not correctly configured, the chip will not accept any write operations.
Write Protection Enabled in Software: Many systems allow software-based write protection. If the system has enabled the Block Protection feature or the Global Block Protection, certain areas of the memory may become write-protected.
Sector Locking Issues: The W25Q128JVFIQ allows the protection of individual sectors of memory. If a sector is locked, write attempts to that sector will fail.
Solutions:
Verify the state of the WP pin, ensuring it is not grounded. If it is, disconnect it or tie it high (to VCC) to allow write operations.
Check for any software settings that may have enabled write protection. You can disable software-based protection by issuing the appropriate commands to unlock the memory.
Use the UNLOCK command to unlock protected sectors if necessary.
3. Power Supply Issues and Voltage Fluctuations
Power supply problems are another common source of instability for the W25Q128JVFIQ. Flash memory chips are sensitive to voltage levels, and even slight fluctuations can cause issues with data retention or communication.
Symptoms:
Random errors during data write or read.
Inconsistent or intermittent communication failures.
Corruption of data stored on the chip.
Possible Causes:
Inadequate Power Supply: The W25Q128JVFIQ requires a stable 3.3V power supply. If the voltage dips below the required level, or if the power is noisy, the chip may not function correctly.
Inrush Current During Power-Up: When powering up the system, the initial inrush current can sometimes cause issues, especially if the power supply is not capable of handling the surge.
Solutions:
Ensure that the power supply provides a clean, stable 3.3V voltage with sufficient current capacity (typically around 10mA in read mode, and higher in write mode).
Consider adding a decoupling capacitor (e.g., 100nF) near the chip to filter out noise and smooth voltage fluctuations.
Use a power-up sequence with proper capacitors to avoid inrush current issues.
4. Data Corruption and Read/Write Failures
Occasionally, developers may encounter issues where the data written to the W25Q128JVFIQ appears to be corrupted or unreadable. This could manifest as incorrect data being returned during read operations, or entire sectors becoming inaccessible.
Symptoms:
Data read from the memory does not match the data written.
Failed verification of written data.
Incomplete or scrambled data.
Possible Causes:
Timing Issues: Improper timing during the read or write operation, such as insufficient delay between commands, can result in corrupted data. Ensure that proper timing and delays are respected according to the datasheet.
Command Errors: Incorrect command sequences or failure to issue necessary commands (e.g., Page Program or Read Data) may cause issues with data integrity.
Electromagnetic Interference ( EMI ): External interference from nearby electronic components or devices can cause data corruption in flash memory. This is especially an issue in high-speed communication systems.
Solutions:
Review and adhere to the timing requirements specified in the datasheet, ensuring that command sequences are properly followed.
Use the appropriate "read" and "write" commands in the correct order, taking care to issue the "Write Enable" command before writing data.
If EMI is suspected, consider adding shielding around the SPI lines or placing decoupling capacitors to reduce interference.
Advanced Troubleshooting and Solutions for the W25Q128JVFIQ
In the first part of this article, we discussed some common issues related to the W25Q128JVFIQ, such as initialization failures, communication issues, write protection, and power supply problems. In this second part, we will explore more advanced troubleshooting scenarios and solutions that can help you address complex issues and optimize your system's performance.
5. Intermittent or Random Failures
Sometimes, the W25Q128JVFIQ may appear to function correctly under certain conditions but fail intermittently, especially in systems with heavy data loads or high-frequency operations.
Symptoms:
Data corruption or loss that occurs randomly, even though the system operates correctly under normal conditions.
Intermittent failure during writing or reading processes, without a clear pattern.
System crashes or unexpected behavior during long operational periods.
Possible Causes:
Signal Integrity Issues: As systems become more complex, signal integrity can degrade. High-frequency signals, long PCB traces, and improper grounding can cause data corruption or read/write errors.
Thermal Issues: Flash memory chips are sensitive to temperature fluctuations. If the device is subjected to high temperatures, it may result in erratic behavior or failures.
Incorrect Flash Programming: Flash memory operations like Page Program, Sector Erase, and Block Erase may not be executed properly due to errors in the timing or command sequence.
Solutions:
Ensure proper PCB design with short, clean SPI traces to minimize signal integrity issues. Use ground planes to reduce noise and improve the quality of the signal.
Monitor the temperature of the W25Q128JVFIQ during operation. If the chip becomes too hot, consider improving cooling mechanisms or lowering the operating frequency.
Revisit your programming sequence and verify that timing constraints are met. Add delays between commands if necessary to ensure the memory chip processes them correctly.
6. Memory Integrity and Data Recovery
Sometimes, flash memory chips may experience failure where previously written data becomes corrupted or unreadable. This is particularly critical for systems with persistent data storage, like firmware updates or user configurations.
Symptoms:
The data read from the memory is invalid or inconsistent.
Write operations fail to commit to memory correctly.
System failures upon reboot or when reading from the memory.
Possible Causes:
Flash Wear-Out: Flash memory cells wear out after a certain number of program/erase cycles. If the W25Q128JVFIQ is used extensively for writing data, some memory sectors may begin to fail, leading to data corruption.
Incorrect Erase or Program Operations: A programming failure during a sector or block erase operation may leave the memory in an inconsistent state.
Solutions:
Regularly monitor the health of the memory chip, especially if it is subjected to frequent writes. Consider implementing wear-leveling algorithms to distribute write/erase cycles evenly across the memory.
Use the built-in ECC (Error Correction Code) feature of the W25Q128JVFIQ to detect and correct errors in the stored data.
If the memory is in an inconsistent state, consider performing a full memory reset and reprogramming the device. Ensure that all sector and block erase operations are properly issued before writing new data.
7. Firmware Updates and Compatibility
When updating firmware or changing the system software, it’s essential to ensure that the new code is compatible with the W25Q128JVFIQ and that the device’s memory layout hasn’t changed unintentionally.
Symptoms:
Firmware updates fail or cause the system to hang during boot.
The device cannot be reprogrammed after a firmware update.
Unexpected errors after updating the firmware.
Possible Causes:
Incompatible Firmware: If the firmware update is incompatible with the W25Q128JVFIQ, the chip may fail to initialize correctly or may refuse to accept new data.
Incorrect Memory Map or Addressing: Changing the memory layout or addressing scheme during firmware updates can cause the chip to behave unexpectedly, especially if new sections of memory are being used for the first time.
Solutions:
Always test firmware updates on a small scale before rolling them out to production systems.
Verify that the memory layout remains consistent between firmware versions. If changes are made, ensure that the chip’s addressing is updated accordingly.
Perform a factory reset or re-initialize the memory after a firmware update to ensure that the system starts with a clean state.
In conclusion, the W25Q128JVFIQ is a robust and reliable memory solution for embedded systems, but like any complex component, it can face challenges. By understanding common troubleshooting scenarios and employing the solutions outlined above, you can resolve issues efficiently, ensuring your system performs reliably. Whether you're dealing with communication errors, power supply issues, or firmware compatibility, these tips will help you navigate and solve problems effectively.
