Understanding the SN75176BDR and Identifying Common Issues

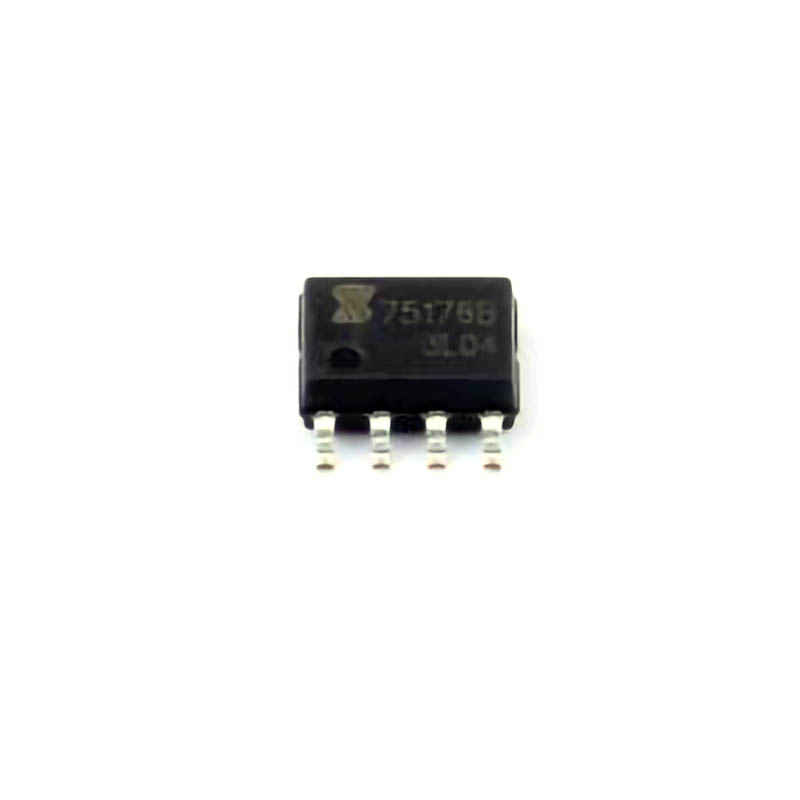

The JSMS EMI SN75176BDR is a differential bus transceiver , designed primarily for serial communication systems. It’s especially popular in RS-485 and RS-422 applications, making it an essential part of various industrial automation and networking setups. As a key component in differential signaling systems, the SN75176BDR plays a crucial role in ensuring reliable and high-speed data transmission over long distances.
Despite its impressive specifications and durability, users may encounter certain operational issues when integrating or utilizing the SN75176BDR in their systems. These issues can stem from various factors, including improper wiring, external interference, or component malfunctions. Troubleshooting these problems can seem daunting, but with the right approach, you can resolve them effectively.
1. Power Supply Issues
One of the most common causes of problems with the SN75176BDR is power supply-related issues. A stable and adequate power supply is vital for the proper functioning of any electronic component, and the SN75176BDR is no exception. Insufficient voltage or fluctuating power can lead to communication failures or intermittent behavior.
Solution:
Check Voltage Levels: Ensure that the supply voltage (typically 5V) is stable and within the recommended operating range for the SN75176BDR.
Inspect Grounding: A poor or missing ground connection can lead to erratic behavior. Verify that the ground pins are securely connected to the system’s ground.
Power Decoupling: Use appropriate decoupling capacitor s near the Vcc and ground pins to filter out noise and stabilize the power supply.
2. Incorrect Pin Connections
Incorrect wiring or pin configurations can cause a range of issues, from the device not functioning at all to intermittent data transmission problems. The SN75176BDR has several pins for various functions, such as A, B (data pins), Vcc, ground, and control pins. Miswiring any of these can prevent proper communication.
Solution:
Double-Check Pinout: Cross-reference the SN75176BDR datasheet to ensure each pin is correctly connected.
Control Pins: Ensure that the RE (Receiver Enable) and DE (Driver Enable) pins are correctly set to control the device’s driver and receiver functionality. These pins should be configured according to whether the device is acting as a transmitter or receiver.
Termination Resistors : RS-485 networks often require termination resistors to minimize reflections. If the SN75176BDR is part of such a network, make sure the correct resistors are installed at both ends of the bus.
3. Signal Integrity Problems
Signal integrity issues can arise due to improper wiring or external interference, causing the SN75176BDR to misinterpret data. These issues are more prevalent in environments with high electromagnetic interference (EMI) or long communication cables, which are prone to signal degradation.
Solution:
Cable Selection: Use twisted-pair cables with proper shielding to reduce EMI and improve signal integrity.
Shorten Cable Length: If possible, reduce the cable length between the SN75176BDR and other devices in the communication network.
Terminating Resistor: Use terminating resistors at both ends of the differential signal lines (A and B) to prevent reflections and improve the quality of the signals.
4. Incorrect Logic Level Translation
The SN75176BDR works with differential signaling, meaning that it requires proper voltage levels to drive the A and B lines. If the logic levels are mismatched, the data transmission will fail or behave unpredictably.
Solution:
Verify Logic Levels: Make sure the input and output logic levels match the specifications for RS-485 or RS-422 standards. A mismatch can lead to communication errors.
Level Shifting: If your system operates at different voltage levels, consider using a level shifter to match the input and output voltage levels correctly.
5. Driver and Receiver Enablement Issues
The SN75176BDR’s DE (Driver Enable) and RE (Receiver Enable) pins control the operation of the transmitter and receiver sections. If these pins are not correctly configured, the device may not send or receive data as expected.
Solution:
Driver Enable (DE) Pin: This pin should be pulled high to enable the transmitter. If it’s left low, the transceiver will not drive the bus.
Receiver Enable (RE) Pin: This pin controls whether the receiver section is enabled. It should be pulled low to allow the receiver to function. If it is high, the receiver will be disabled, leading to communication failure.
6. Bus Contention
Bus contention occurs when multiple devices attempt to drive the bus at the same time, leading to conflicts. In systems with multiple transceivers, improper driver enablement or conflicting drivers can cause serious data transmission issues.
Solution:
One Driver at a Time: Ensure that only one device is transmitting data at any given time. This can be achieved by properly managing the DE and RE pins.
Bus Arbitration: In systems where multiple devices might need to transmit simultaneously, use bus arbitration protocols to avoid contention and ensure that only one device drives the bus at a time.
Advanced Troubleshooting Techniques and Preventative Measures
While the issues mentioned in Part 1 are common and relatively easy to address, there are more advanced troubleshooting techniques and preventative measures that can help ensure the SN75176BDR operates reliably over the long term. Understanding the deeper causes of problems can lead to more efficient troubleshooting and maintenance of your communication systems.
1. Overheating and Thermal Management
Overheating can occur when the SN75176BDR is operating under heavy load or in a poorly ventilated environment. Excessive heat can cause the device to fail or degrade its performance over time.
Solution:
Proper Heat Dissipation: Ensure that the transceiver has adequate cooling, especially if it is part of a system operating at high frequencies or in a high-temperature environment.
Use of Heat Sinks: If necessary, attach a heat sink to the SN75176BDR to help dissipate heat more effectively.
2. Electromagnetic Interference (EMI) Mitigation
The SN75176BDR operates in environments where EMI can cause signal degradation or malfunctions. High-frequency noise from nearby electronic devices, motors, or power lines can interfere with the transceiver’s communication signals.
Solution:
Shielded Cables: Use cables with proper shielding to minimize EMI and prevent external interference.
Ferrite beads : Ferrite beads placed around the signal cables can help filter out high-frequency noise and improve signal quality.
Grounding Techniques: Ensure that your system is properly grounded to prevent EMI from affecting the SN75176BDR.
3. Testing with Oscilloscope or Logic Analyzer
When troubleshooting the SN75176BDR, a basic multimeter might not provide enough insight into the nature of the issue. Using an oscilloscope or logic analyzer can help you analyze the communication signals in real time and pinpoint the exact source of problems.
Solution:
Check Waveform Integrity: Use an oscilloscope to verify the integrity of the differential signals on the A and B lines. A clean, sharp waveform is essential for reliable communication.
Signal Timing : Check for timing issues, such as signal skew or excessive delay, that could indicate problems with the transceiver or its connection to the rest of the system.
4. Firmware and Software Configuration
Sometimes, the issue may not lie with the hardware but with the firmware or software controlling the SN75176BDR. Incorrect configuration in the communication protocols or timing parameters could lead to problems with data transmission.
Solution:
Check Configuration Settings: Verify that the software or firmware controlling the SN75176BDR is configured correctly. This includes ensuring that the baud rate, data format, and other communication settings match the specifications of the connected devices.
Error Handling: Implement proper error handling routines in your software to detect and recover from communication failures.
5. Preventative Maintenance Tips
To avoid future problems with the SN75176BDR, it’s important to adopt a proactive approach to maintenance. This includes regular system checks and preventive measures that ensure the device continues to function optimally.
Solution:
Regular Inspections: Periodically inspect the transceiver and its surrounding components for signs of wear or damage.
Firmware Updates: Keep your firmware up to date to take advantage of any performance improvements or bug fixes provided by the manufacturer.
Environment Control: Ensure that the SN75176BDR is used in an environment that meets its operational requirements, including temperature, humidity, and electromagnetic conditions.
In conclusion, while the SN75176BDR is a robust and reliable transceiver, it can still face issues like any other electronic component. By understanding the common problems, implementing effective troubleshooting techniques, and taking preventative measures, you can ensure that your SN75176BDR-based systems continue to operate smoothly and efficiently.
